Configuration via PRG 100

General

Using the PRG 100 programming device, menu-guided configuration of the IPG 141 can be performed directly on-site. Only the most important configuration parameters are available. Complete configuration of the device is possible via the integrated web interface.

Accessing configuration

  • Insert the PRG 100 cable into the “TERMINAL” socket of the IPG.

  • Switch on the PRG 100 and press the button ❌ .

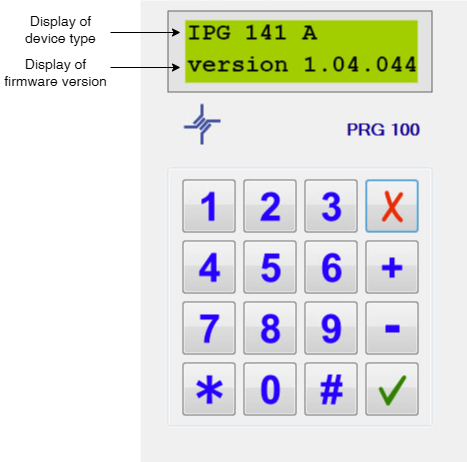

  • The following display will appear:

PRG an IPG.drawio.png

Menu navigation

  • Navigation

    • Use “➕” and “➖” to scroll through the menu entries

  • Open submenu

    • If a menu item with “?” appears (e.g. “Einstellungen?”), press ✔️

  • Change value

    • Select the desired entry

    • Press ✔️ (cursor starts blinking)

    • Use “➕”/“➖” to set a new value

    • Confirm with ✔️

  • Cancel & return

    • Press ❌ to cancel the input or return to the main menu
