Before carrying out installation work on the connection terminals and wiring, the IPG must be disconnected from the power supply (unplug mains power) and from the internal sealed lead-acid battery (disconnect the positive terminal).
Connect the IPG to the battery and power supply only after all installation work has been completed.
Selecting Installing Location
Install IPG in the machine room or hoistway, where the following requirements are met:
-
Sufficient 4G coverage
-
At least 1,5m distance between the antenna, the IPG, and other electronic or electrical equipment
-
At least 1,5m distance from potential sources of interference such as frequency converters or other radio transmitters
-
The IPG must remain accessible for maintenance purposes
-
Separate routing of power and communication cables
-
Required mounting material (screws and dowels) are included.
Mounting the unit on the top of car is not recommended, as stable and uninterrupted 4G coverage cannot be guaranteed.

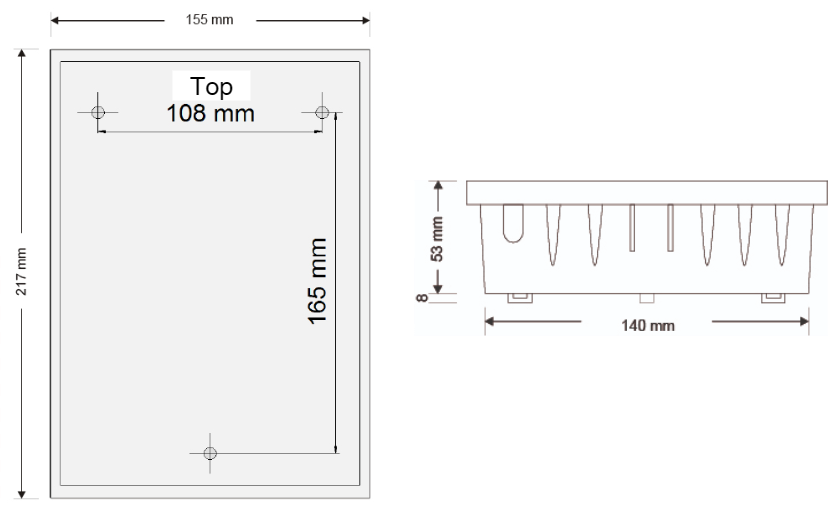

Mounting Diagram / Enclosure Dimensions
